BROUGHTON STREET, 1964

This model redesigns the main street of Savannah, Georgia with period signage and paint. Building plates were drafted and laser-cut. The entire model was fully hand-painted, and measures 6' 2" from end to end.

Full Street Banner.jpg

REDESIGNING THE STREET

To create the model, the existing street was documented as-built and drafted at 1/4" = 1'. The signage, colors, graphics, and materials were then redesigned to fit a street in 1964.

Marquee- Night
Daytime Street
Leopold's Ice Cream
Catching a Cab
Corner Store Nighttime
Weis Park view
Murray's Parking Lot
Marquee
Street View

Click the gallery to view more images

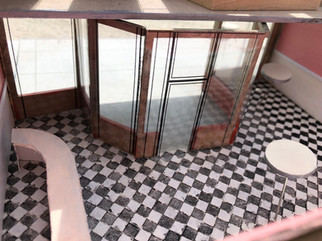

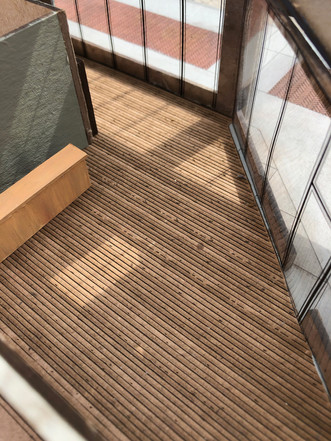

MODELING PROCESS

The model was built at 1/4" scale out of chipboard, acrylic, paper, and vellum. Main elements were drafted and then laser-cut. The model was painted by hand and internally lit to create a neon glow in the theater marquee and tower.
